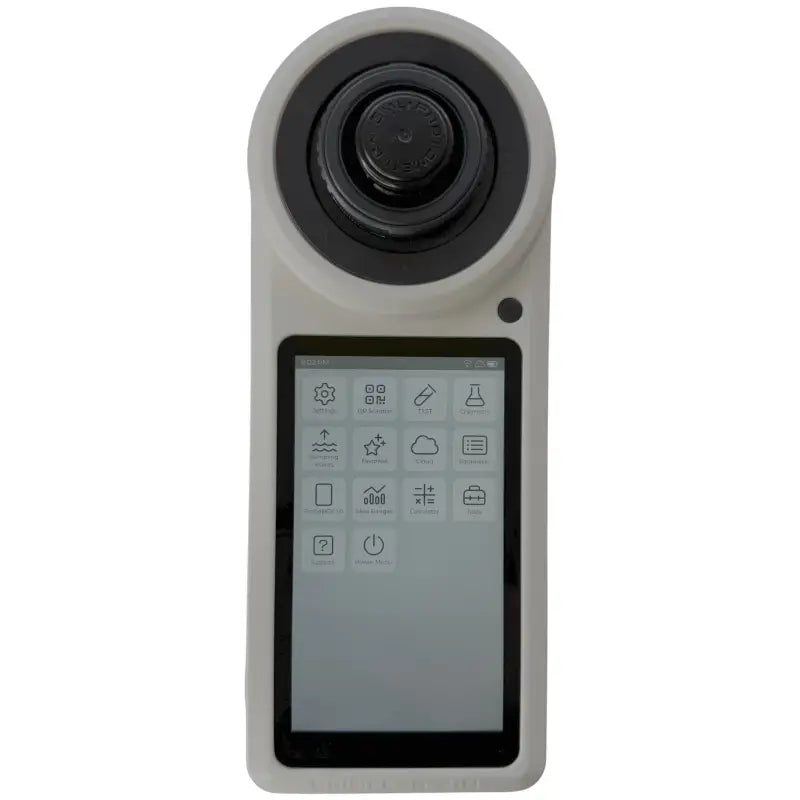

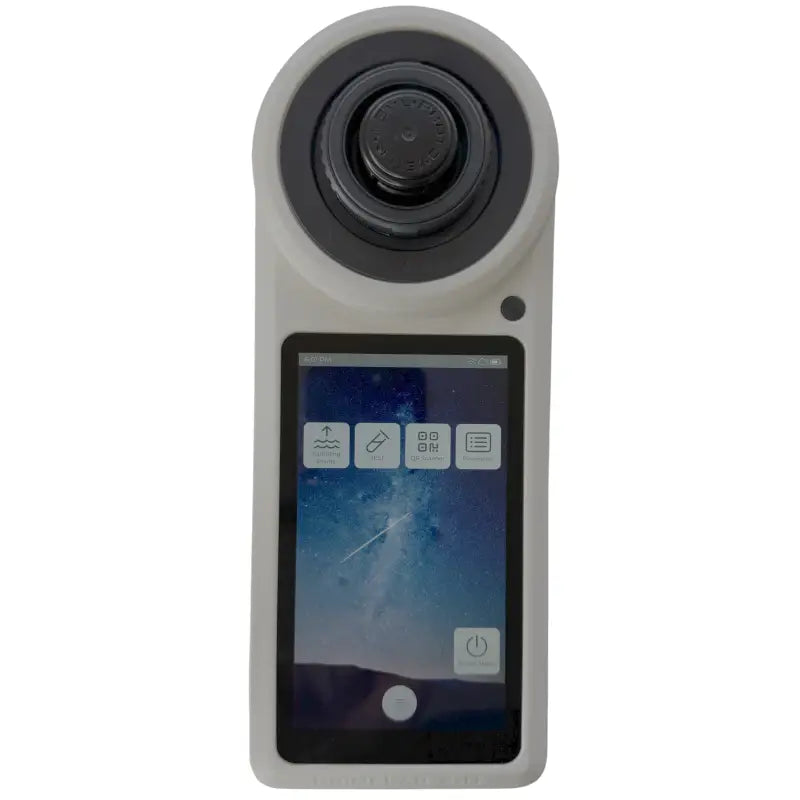

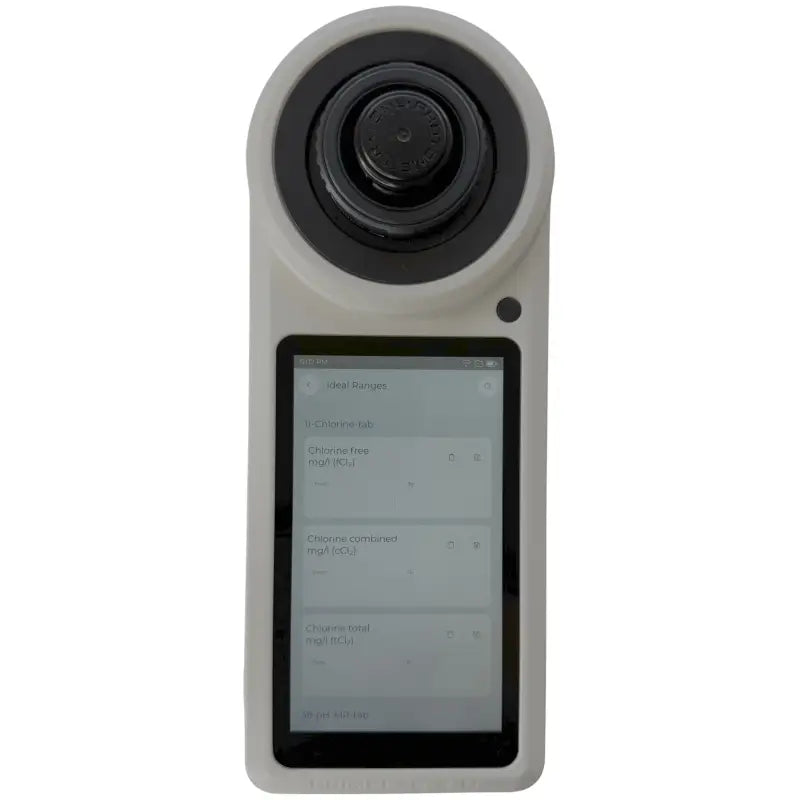

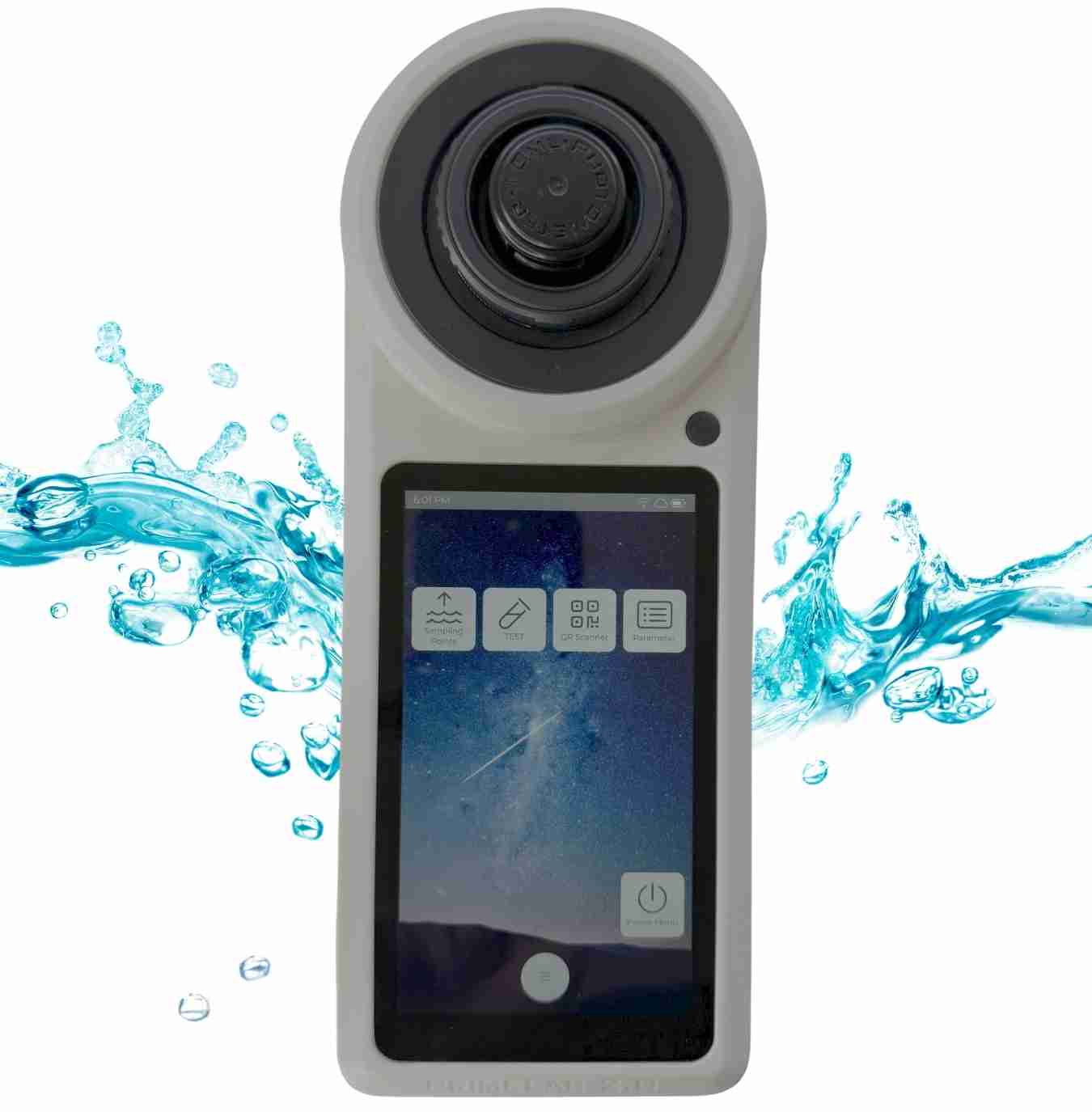

PrimeLab 2.0: The Next Generation Photometer by Water-i.d.®
The PrimeLab 2.0 is designed for high-precision readings with 18 different wavelengths, offering advanced features that elevate testing capabilities:
Multi-Connectivity: Connect via WiFi, USB, Bluetooth®, and GSM (via USB modem) for seamless integration with smartphones, tablets, and computers, or directly to the LabCOM® cloud.

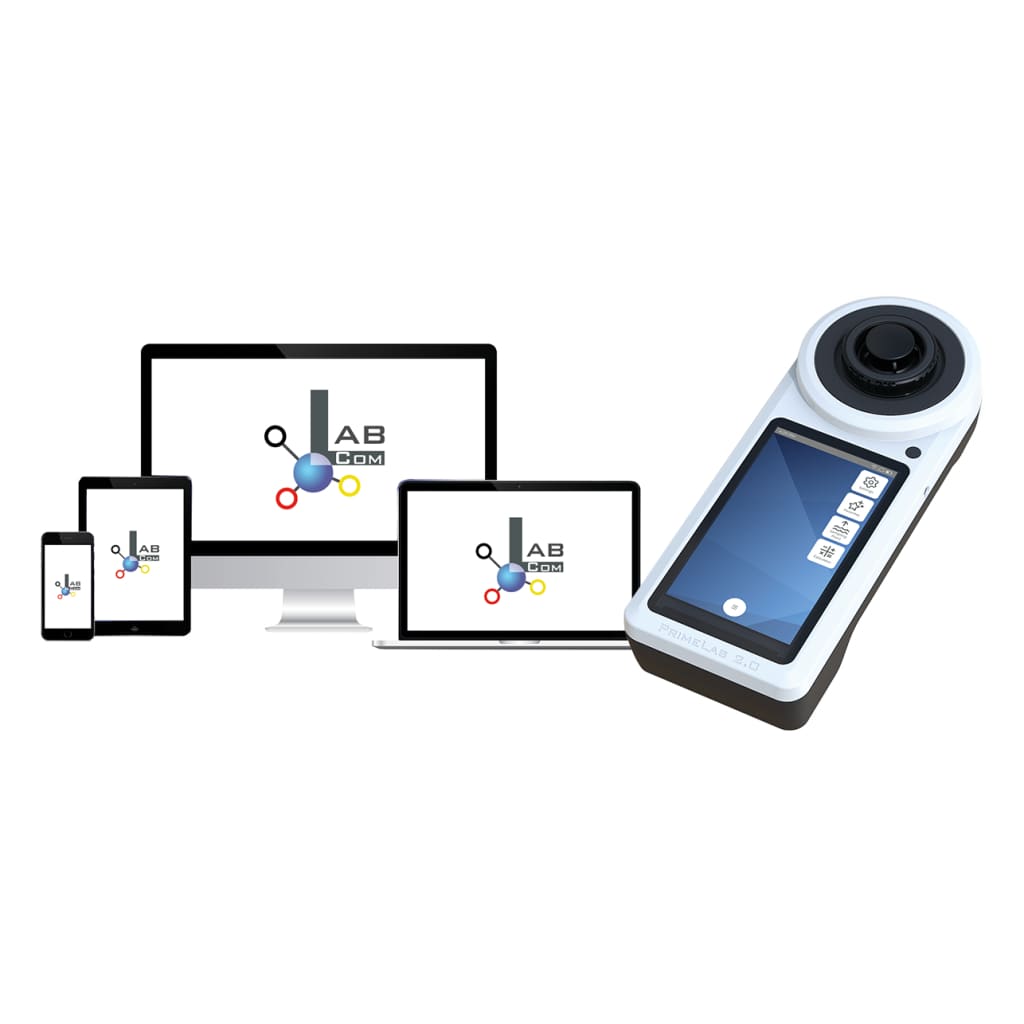

Advanced Software & App: Synchronize your data effortlessly through a free cloud service.

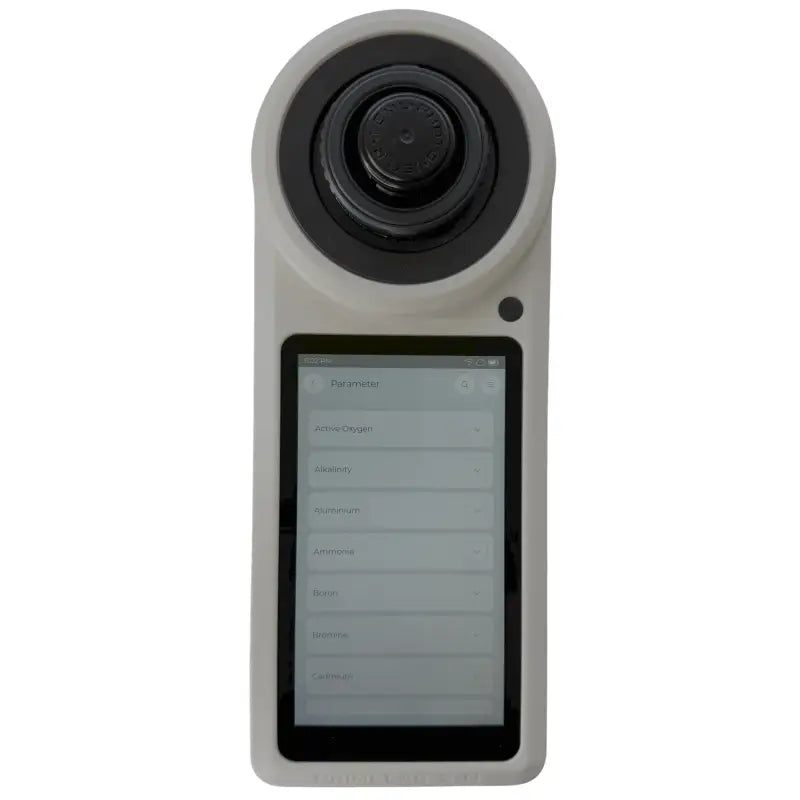

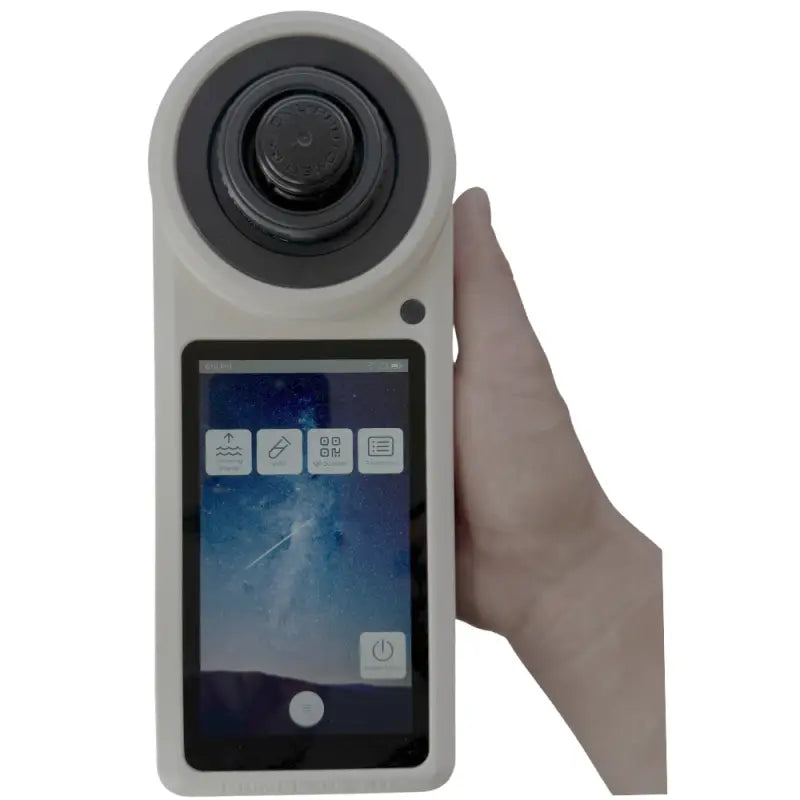

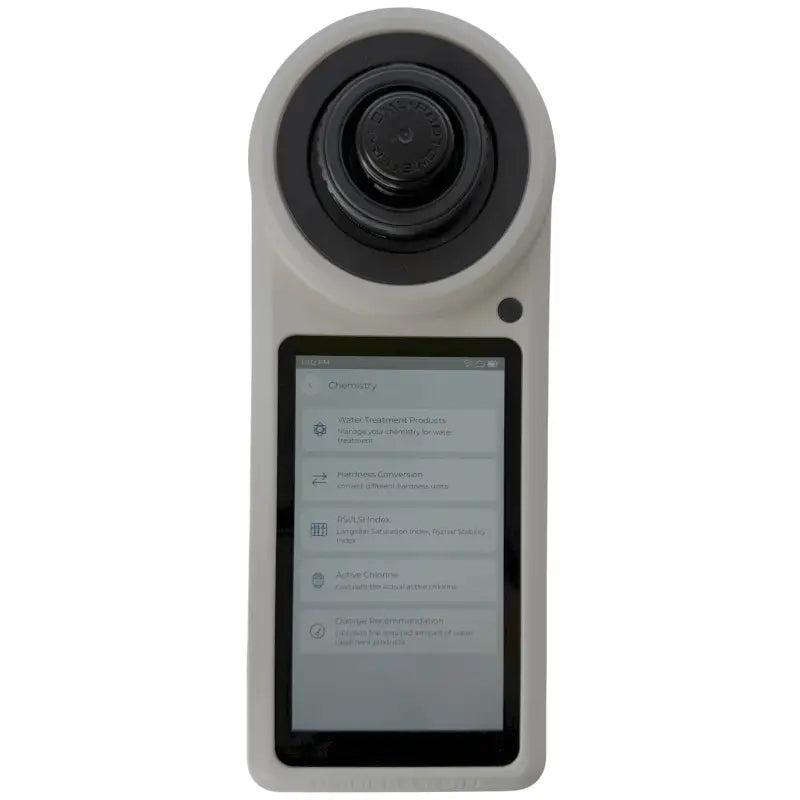

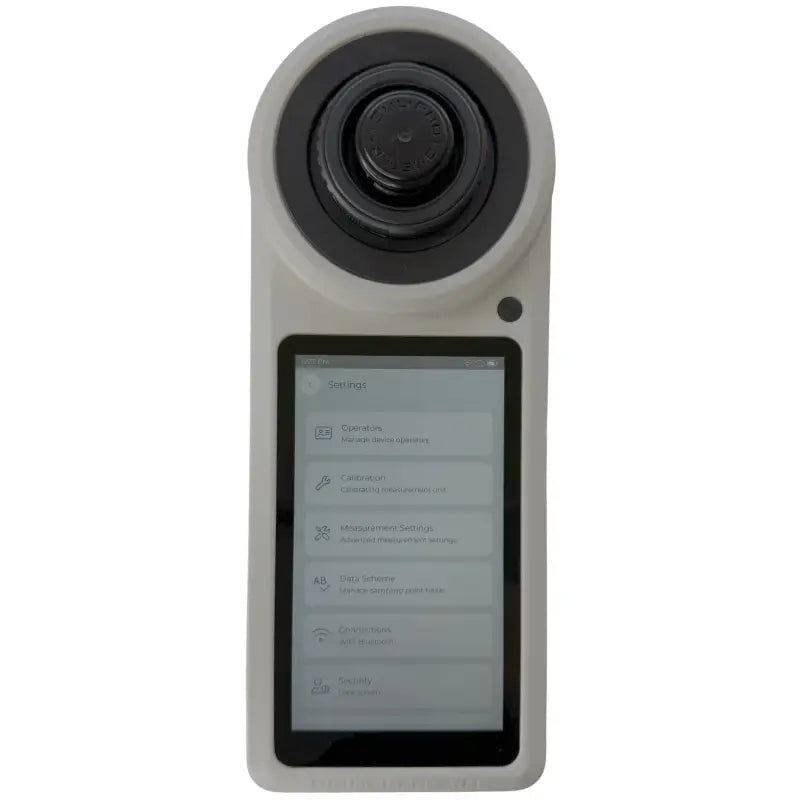

User-Friendly Interface: Enjoy a large HD touch display and the option to connect electrodes for enhanced versatility.
Enhanced Measurement Capabilities
Unlike conventional photometers, the PrimeLab 2.0 can simultaneously receive data from multiple wavelengths, covering crucial parts of the UV, IR, and entire VIS ranges. Its LEDs are strategically positioned at 180° and 90° for NTU turbidity, PTSA, and fluorescein measurements. With narrow peaks between 390 and 950 nm, it achieves accuracy comparable to a spectrophotometer.
Intelligent Firmware
The PrimeLab 2.0 features professional firmware that interpolates between wavelengths, optimizing accuracy by utilizing multiple wavelengths for various parameter curves. Users benefit from:
Step-by-Step Instructions: Available in multiple languages, with animations and links to user videos to ensure correct procedures.
Flexible Parameter Setup: Build on the flexibility of PrimeLab 1.0 with over 140 parameters/methods tailored for diverse industries.
QR Code Scanning
Equipped with a built-in camera, the PrimeLab 2.0 can scan QR codes for:
Sampling Point Identification: Ensures test results are linked to the correct sampling site, streamlining the process by auto-selecting the location.
Reagent Verification: Prevents the use of incorrect or expired reagents by pre-selecting parameters/methods, enhancing efficiency.
The PrimeLab 2.0 combines cutting-edge technology with user-friendly features, making it the ultimate tool for precise and efficient testing in various applications.
PrimeLAB 2.0 is equipped with:
- 18 wavelengths (410–940 nm)
- 5.5" colour HD touch display
- Camera (QR–code scanner)
- USB Type–C
- WiFi, USB, 4G**, Bluetooth®
- Probe–connector (pH|EC|TDS|Temp|ORP)
Industries that use:
- Drinking Water
- Laboratories
- Waste Water
- Marine
- boiler water
- Cooling water
- Pools
- Food and beverage
Flexible Kits for Your Needs
Our range of starter kits, based on a foundational kit, makes it easy to select the right option for your specific application. Each kit includes essential accessories, allowing you to customize your setup with the necessary reagents and parameters. This ensures you only pay for what you truly need, providing both flexibility and cost-effectiveness.
Additionally, you can expand your kit in the future as needed.
24 months warranty for devices.

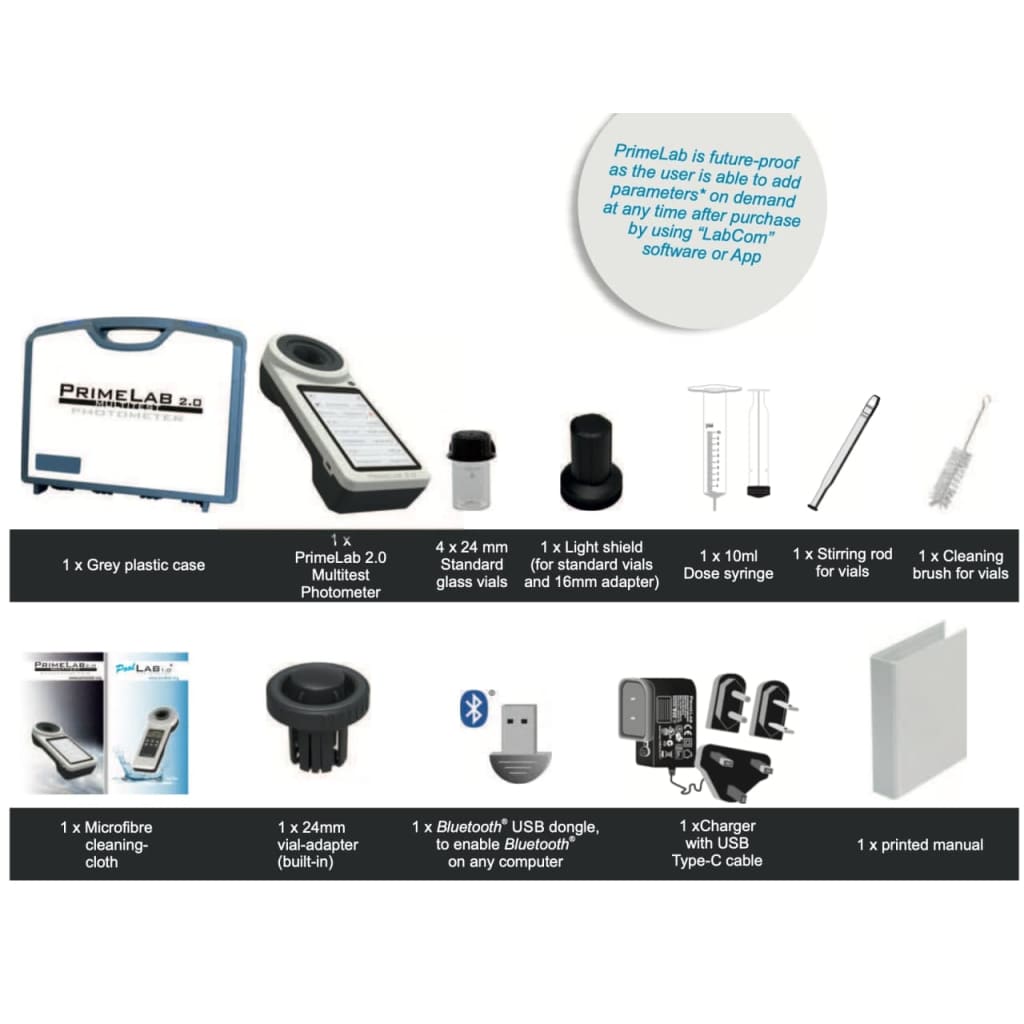

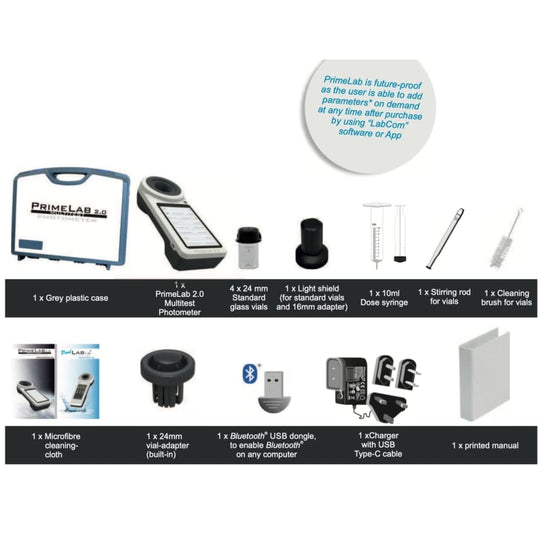

PL02B:

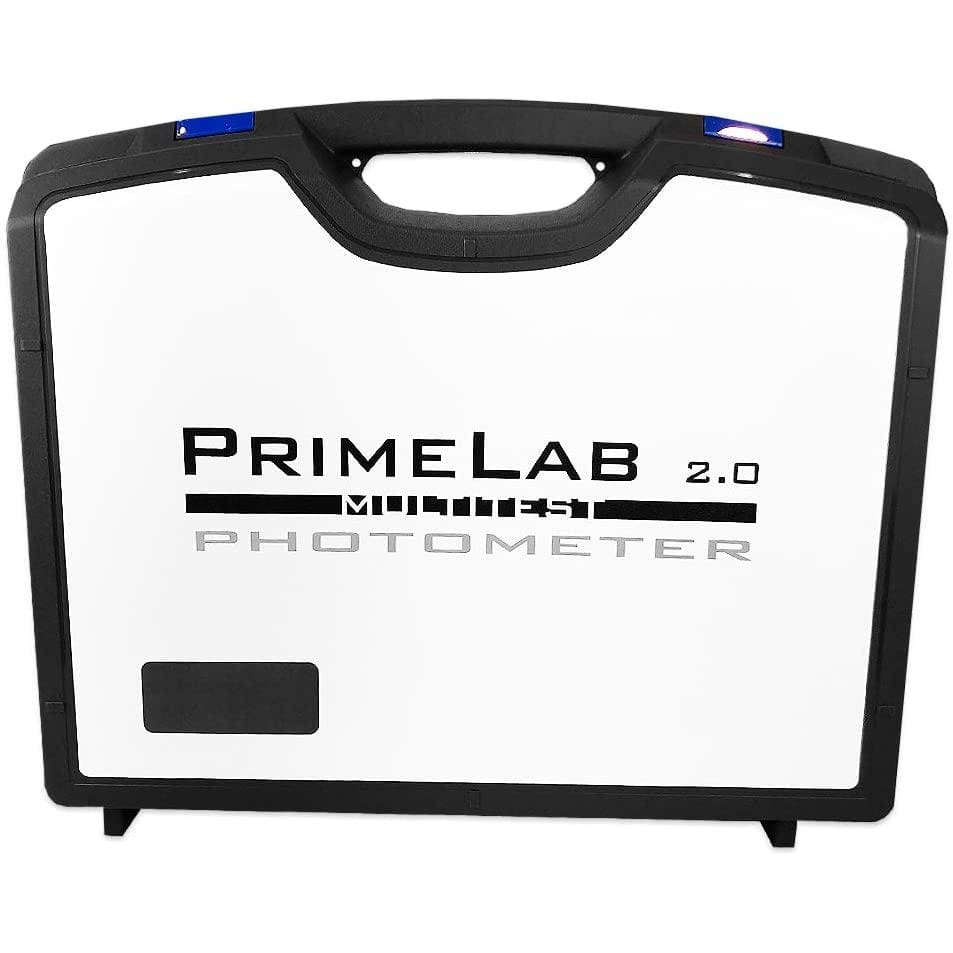

1 x Grey plastic carrying-case with foam insert
1 x PrimeLab 2.0 Multitest Photometer
5.5‘‘ HD–Colour-Touch Display
18 wavelengths-scan (410 – 940nm)
„90° ready“ for NTU, PTSA, Fluorescein, Plankton
Option of over 140 different parameters (chargeable activation required)
8.400 mAh Li-Ion-battery (built–in)
Bluetooth® 4.2
WiFi/USB Type C | GSM (via USB-Type-C Modem)
Option to connect Electrodes (via USB Type C plus A/D–changer–Box)
Built-in camera to scan QR-codes
Self-Calibration-Mode with certificate (via LabCOM® software)
„I-OTZ“ Intelligent–One–Time–Zero
Compatible to the free of charge PrimeLab tools:
LabCOM® App| Software|Cloud (Android, iOS, Windows, Mac, Browser)
4 x 24mm|10ml glass-vials with lid (light-shield incorporated into the lid)
1 x Light shield (for 16mm and 1ml vials as well as check-standards)
1 x 24mm vial adapter (built–in; exchangeable)
1 x 10.5 cm stirring rod
1 x 10ml plastic syringe (graduated)
1 x Vial cleaning brush
1 x Microfibre cleaning cloth for vials
1 x Charger with cable (USB–Type–C)
1 x Printed user manual in a ring-binde

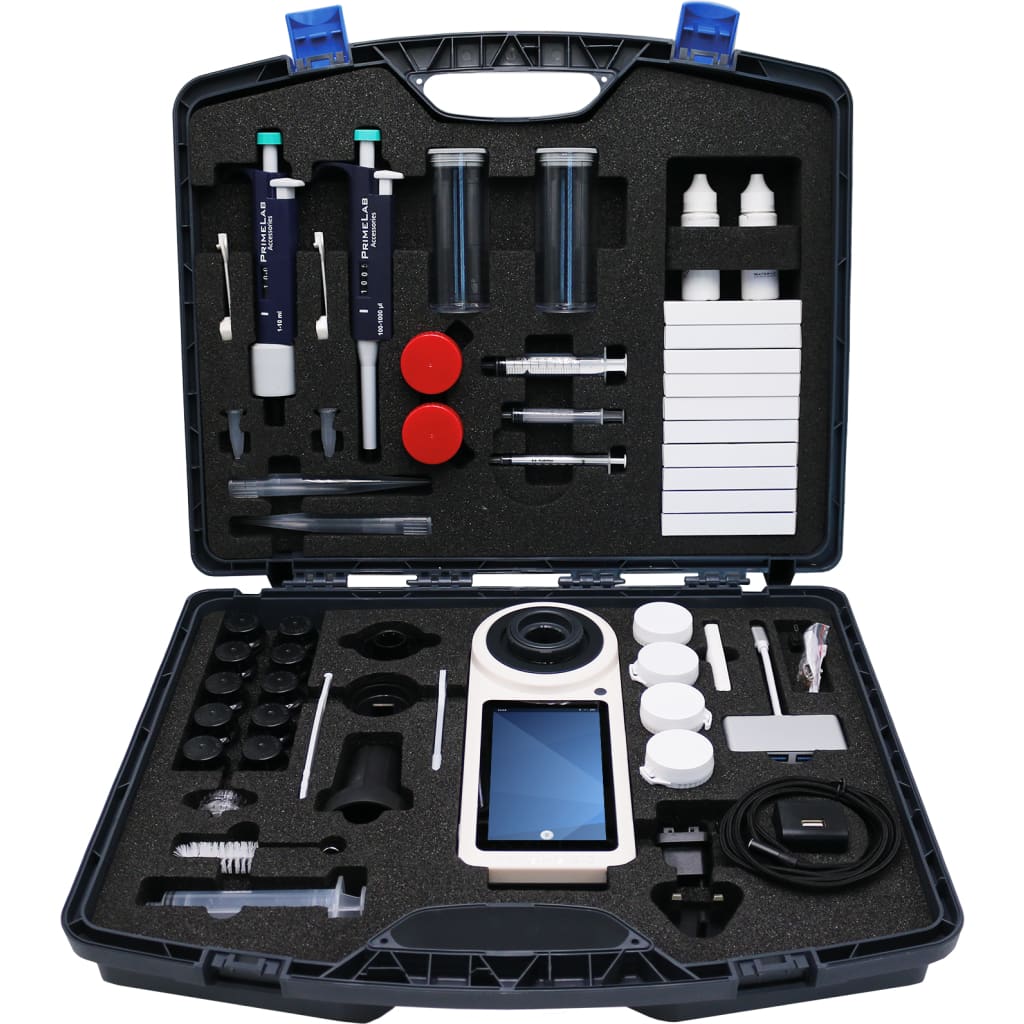

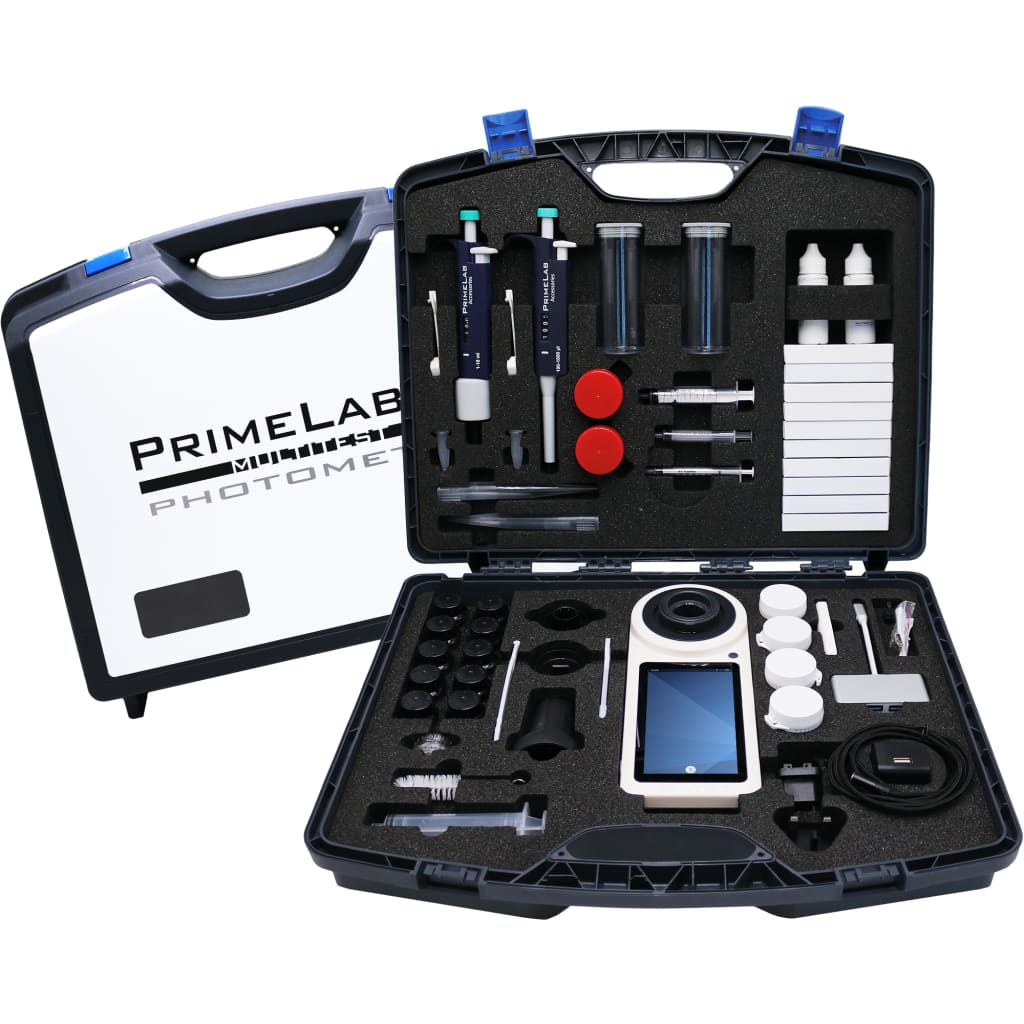

PL02BALL-wo90:
Additional To PL02B
1 x 16mm vial adapter
1 x 1ml semi-micro-vials (rectangle) adapter
1 x Luer lock syringe (20ml) with adapter for filter holder
1 x Filteradapter for 20ml Luer-Lock-Spritze
1 x Can with 50 filter-papers GF/C (25mm)
1 x Can with 50 filter-papers 0.4μ (25mm)
1 x 100ml can with lid (for dilution)
PL02BALL:
Additional To PL02B
1 x 16mm vial adapter
1 x 1ml semi-micro-vials (rectangle) adapter
1 x Luer lock syringe (20ml) with adapter for filter holder
1 x Filteradapter for 20ml Luer-Lock-Spritze
1 x Can with 50 filter-papers GF/C (25mm)
1 x Can with 50 filter-papers 0.4μ (25mm)
1 x 100ml can with lid (for dilution)
PL02B-TRB:
Additional To PL02B
1 x 1 - 10ml professional lab pipette with 2 tips
1 x NTU-Turbidity calibration kit. Sealed glass vials with 0.5/10/1000 NTU
1 x Activation Code ID 112 Turbidity
PrimeLAB 2.0 photometer only.
ID 01 / Active Oxygen / 0 - 40 mg/l ppm/ tablet / Resolution 0.1
ID 05 / Alkalinity-M / 5 - 200 mg/l / tablet / Resolution 1
ID 193 / Alkalinity-M / 0 - 200 mg/l / liquid / Resolution 1
ID 121 / Alkalinity-M (HR) / 0 - 500 mg/l / tablet / Resolution 1
ID 06 / Alkalinity-P / 5 - 300 mg/l tablet / Resolution 1
ID 04 / Aluminium / 0 - 0.3 mg/l / tablet / Resolution 0.01
ID 02 / Ammonia (LR) / 0 - 1 mg/l / powder / Resolution 0.01
ID 155 / Ammonia (HR) / 1 - 50 mg/l / prepared vials + powder / Resolution 0.1
ID 125 / Acsamine 28F / 0 - 100 mg/l / liquid / Resolution 1
ID 145 / Acsamine CC / 0 - 100 mg/l / liquid / Resolution 1
ID 146 / Acsamine CCA / 0 - 100 mg/l / liquid / Resolution 1
ID 126 / Acsamine DW / 0 - 100 mg/l / liquid / Resolution 1
ID 141 / Acsamine DWBR1 / 0 - 100 mg/l / liquid / Resolution 1
ID 142 / Acsamine DWC / 0 - 100 mg/l / liquid / Resolution 1
ID 143 / Acsamine SW / 0 - 100 mg/l / liquid / Resolution 1
ID 144 / Acsamine SWC / 0 - 100 mg/l / liquid / Resolution 1
ID 07 / Boron / 0 - 2 mg/l / tablet / Resolution 0.1
ID 08 / Bromine / 0 - 18 mg/l / tablet / Resolution 0.01
ID 63 / Bromine / 0 - 18 mg/l / liquid / Resolution 0.01
ID 128 / Bromine / 0 - 4.5 mg/l / Resolution 0.01
ID 71 / Carbohydrazide / 0 - 1.3 mg/l / liquid / Resolution 0.01
ID 95 / Chloramines / 0.00 - 8.00 mg/l / tablet / Resolution 0.01
ID 10 / Chloride / 0.5 - 25 mg/l / tablet / Resolution 0.1
ID 124 / Chloride / 0 - 100 mg/l / liquid / Resolution 0.1
ID 167 / Chloride in Methanol / 0 - 20 mg/l / liquid / Resolution 0.01
ID 11 / Chlorine (free-combined-total) / 0.00 - 8.00 mg/l / tablet / Resolution 0.01
ID 12 / Chlorine (free-combined-total) / 0.00 - 8.00 mg/l / liquid / Resolution 0.01
ID 129 / Chlorine (free/combined/total) 0.00 – 8.00 mg/l / powder / Resolution 0.01
ID 122 / Chlorine (MR) / 0.00 - 10.00 mg/l / tablet / Resolution 0.01
ID 14 / Chlorine (HR) 5 - 200 mg/l / tablet + powder / Resolution 1
ID 15 / Chlorine (HR) 0 - 200 mg/l / liquid / Resolution 1
ID 16 / Chlorine Dioxide / 0 - 15 mg/l / tablet / Resolution 0.01
ID 64 / Chlorine Dioxide / 0 - 15 mg/l / liquid / Resolution 0.01
ID 130 / Chlorine Dioxide / 0 - 5 mg/l / liquid /Resolution 0.01
ID 108 / Total Oxidant / 0 - 8 mg/l / liquid / Resolution 0.01
ID 106 / Chlorite / 0 - 8 mg/l / liquid / Resolution 0.01
ID 94 / Chromium / 0 - 2.2 mg/l / tablet + powder / Resolution 0.01
ID 103 / Chromium / 0 - 1 mg/l / powder-liquid / Resolution 0.01
ID 79 / COD (LR) / 0 - 150 mg/l / prepared vials / Resolution 1
ID 80 / COD (MR) / 0 - 1500 mg/l / prepared vials / Resolution 1
ID 17 / COD (HR) / 0 - 15000 mg/l / prepared vials / Resolution 1
ID 107 / Colour (Hazen/APHA) / 15 - 500 mg/l / - / Resolution 1
ID 18 / Copper / 0 - 5 mg/l / tablet / Resolution 0.01
ID 19 / Copper / 0 - 5 mg/l / powder / Resolution 0.01
ID 158 / Cyanide / 0.01 - 0.50 mg/l / powder-liquid / Resolution 0.01
ID 20 / Cyanuric Acid / 2 - 160 mg/l / tablet / Resolution 1
ID 65 / DBNPA / 0 - 13 mg/l / liquid / Resolution 0.01
ID 82 / DBNPA / 0 - 13 mg/l / tablet / Resolution 0.01
ID 21 / DEHA / 20 - 1000 mg/l / liquid / Resolution 10
ID 163 / Dissolved Oxygen ( 0 - 10 mg/l / liquid / Resolution 0.1)
ID 70 / Erythorbic Acid / 0 - 3.5 mg/l / liquid / Resolution 0.01
ID 113 / Fluorescein / 0 - 500 µg/l / Adapter / Resolution 1
ID 72 / Fluoride / 0 - 2 mg/l / liquid / Resolution 0.01
ID 180 / Fluoride (SPADNS) / 0 - 2 mg/l / liquid / Resolution 0.01
ID 78 / Hardness-Calcium / 0 - 500 mg/l / tablet / Resolution 1
ID 166 / Hardness-Calcium / 0 - 500 mg/l / liquid / Resolution 1
ID 09 / Hardness-Calcium (HR) / 50 - 1000 mg/l / tablet / Resolution 1
ID 56/57 / Hardness-Total (LR/HR) / 2(20) - 50(500) mg/l / tablet / Resolution 1
ID 148 / Hardness total (HR) / 0 - 500 mg/l / liquid / Resolution 1
ID 23 / Hydrazine / 5 - 600 µg/l / liquid / Resolution 1
ID 160 / Hydrocarbons in Methanol (tank wash) / yes/no / Adapter
ID 66 / Hydrogen Peroxide (LR) / 0 - 3.8 mg/l / liquid / Resolution 0.01
ID 24 / Hydrogen Peroxide (LR) / 0 - 3.8 mg/l / tablet / Resolution 0.01
ID 25 / Hydrogen Peroxide (HR) / 0 - 200 mg/l / liquid / Resolution 1
ID 162 / Hydrogen Peroxide (HR) / 0 - 200 mg/l / tablet + powder / Resolution 1
ID 109 / DEWAN-50 / 0 - 300 mg/l / liquid / Resolution 1
ID 26 / Hydroquinone / 0 - 2.5 mg/l / liquid / Resolution 0.01
ID 27 / Iodine / 0 - 28 mg/l / tablet / Resolution 0.01
ID 67 / Iodine / 0 - 28 mg/l / Liquid / Resolution 0.01
ID 28 / Iron (LR) / 0 - 1 mg/l / tablet / Resolution 0.01
ID 29 / Iron (MR) / 0 - 10 mg/l / powder / Resolution 0.01
ID 127 / Iron (MR) Ferrous / 0 - 10 mg/l / powder / Resolution 0.01
ID 30 / Iron (HR) / 0 - 30 mg/l / liquid / Resolution 0.01
ID 132 / Iron total / 0 - 3 mg/l / HACH / Resolution 0.01
ID 149 / Iron in Oil / 50 - 500 mg/l / Liquid / Resolution 1
ID 88 / Isothiazolinone / 0.0 - 10.0 mg/l / liquid / Resolution 0.1
ID 147 / Legionella / 60-1000000 cfu/l / liquid / Resolution 1
ID 93 / Magnesium / 0 - 100 mg/l / tablet / Resolution 1
ID 161 / Manganese VLR / 0 - 0.030 mg/l / tablet / Resolution 0.001
ID 31 / Manganese (LR) / 0.2 - 5 mg/l / powder / Resolution 0.1
ID 69 / Methylethylketoxime / 0 - 4.1 mg/l / liquid / Resolution 0.01
ID 96 / Molybdate (LR) / 0 - 15 mg/l / tablet / Resolution 0.01
ID 33 / Molybdate (HR) / 5 - 200 mg/l / liquid / Resolution 0.1
ID 32 / Molybdate / 1 - 100 mg/l / tablet / Resolution 0.1
ID 134 / Molybdate (HR) / 0 - 40mg/l / HACH / Resolution 0.1
ID 90 / Nickel (HR) / 0 - 7 mg/l / tablet / Resolution 0.1
ID 100 / Nickel (HR) / 0 - 10 mg/l / liquid / Resolution 0.1
ID 34 / Nitrate / 0.00 - 11.00 mg/l / powder-liquid / Resolution 0.1
ID 190 / Nitrate / 1 - 30 mg/l / tube test / Resolution 0.1
ID 169 / Nitrate (HR) / 1 - 100 1 mg/l / powder / Resolution 1
ID 35 / Nitrite (LR) / 0 - 0.5 mg/l / powder / Resolution 0.01
ID 36 / Nitrite (HR) / 5 - 200 mg/l / powder / Resolution 0.1
ID 97 / Nitrite (HR) / 0 - 1500 mg/l / tablet / Resolution 1
ID 101 / Nitrite (HR) / 0 - 3000 mg/l / liquid / Resolution 1
ID 151 / Nitrogen-Total (LR) / 0.5 - 25 mg/l / prepared vials + powder packs / resolution 0.1
ID 152 / Nitrogen-Total (HR) / 5 - 150 mg/l / prepared vials + powder packs / resolution 1
ID 37 / Ozone / 0 -5.4 mg/l / tablet / Resolution 0.01
ID 92 / Ozone / 0 -5.4 mg/l / liquid / Resolution 0.1
ID 164 / Peracetic Acid (LR) / 0.00 - 10.00 mg/l / tablet / Resolution 0.01
ID 165 / Peracetic Acid (HR) / 0 - 300 mg/l / tablet / Resolution 1
ID 159 / Permanganate Time Test in Methanol (tank wash) / 0 -100 %T / liquid / Resolution 0.1
ID 40 / pH-value (LR) / 5.2 - 6.8 / tablet / Resolution 0.01
ID 38 / pH-value (MR) / 6.5 - 8.4 / tablet / Resolution 0.01
ID 39 / pH-value (MR) / 6.5 - 8.4 / liquid / Resolution 0.01
ID 41 / pH-Universal / 5 - 11 / tablet / Resolution 0.1
ID 42 / pH-Universal / 4 - 11 / liquid / Resolution 0.1
ID 98 / Phenol / 0 - 5 mg/l / tablet / Resolution 0.01
ID 43 / PHMB / 2 - 60 mg/l / tablet / Resolution 1
ID 44 / Phosphate-ortho (LR) / 0 - 4 mg/l / tablet + powder / Resolution 0.01
ID 45 / Phosphate-ortho (LR) / 0 - 4 mg/l / powder-liquid / Resolution 0.01
ID 46 / Phosphate-ortho (HR) / 0 - 80 mg/l / tablet + powder / Resolution 0.1
ID 47 / Phosphate-ortho (HR) / 0 - 100 mg/l / liquid / Resolution 0.1
ID 87 / Phosphonate / 0 - 20 mg/l / powder-liquid / Resolution 0.01
ID 110 / Phosphonate / 0 - 20 mg/l / tablet / Resolution 0.01
ID 153 Phosphorus-Total (LR) 0 – 2.6 mg/l / prepared vials + powder-liquid-tablet / resolution 0.01
ID 154 Phosphorus-Total (HR) 0 – 52 mg/l / prepared vials + powder-liquid-tablet / resolution 0.1
ID 85 / Polyacrylate / 1 - 30 mg/l / liquid / Resolution 0.1
ID 48 / Potassium / 0.7 - 12 mg/l / tablet / Resolution 0.1
ID 111 / PTSA / 0 - 1000 µg/l / Adapter / Resolution 1
ID 157 / PTSA Tracer / 0 - 1000 µg/l / Resolution 1
ID 156 PTSA Watch products / 0 - 1000 µg/l / Resolution 1
ID 83 / QAC / 25 - 150 mg/l / tablet / Resolution 1
ID 49 / Silica (LR) / 0 - 5 mg/l / liquid-powder / Resolution 0.01
ID 50 / Silica (HR) / 0 - 100 mg/l / powder / Resolution 1
ID 51 / Sodium Hypochlorite / 0.2 - 40 % / tablet / Resolution 0.1
ID 68 / Sodium Hypochlorite / 0.2 - 40 % / liquid / Resolution 0.1
ID 54 / Sulphate / 5 - 100 mg/l / powder / Resolution 1
ID 55 / Sulphate / 5 - 100 mg/l / powder / Resolution 1
ID 52 / Sulphide / 0.0 - 0.5 mg/l / tablet / Resolution 0.01
ID 140 / Suphide / 0 - 0.7 mg/l / liquid / HACH / Resolution 0.01
ID 53 / Sulphite (LR) / 0 - 10 mg/l / tablet / Resolution 0.1
ID 105 / Sulphite (HR) / 0 - 300 mg/l / tablet / Resolution 0.1
ID 174 / Sulphite (HR) / 0 – 200 mg/ / liquid / Resolution 0.1
ID 81 / Suspended solids / 0 - 750 mg/l / Resolution 1
ID 91 / Tannic acid / 0 - 150 mg/l /liquid / Resolution 0.1
ID 170/ Transmission on wavelenghts in nm: 410, 435, 460, 485, 510, 535, 560, 585, 610, 645, 680, 705,730, 760, 810, 860, 900, 940 / 0 - 100% / Resolution 0.1
ID 191 / (TRO) Total Residual Oxidizers / 0.00 – 4.00 mg/l / liquid / Resolution 0.01
ID 191 / (TRO) Total Residual Oxidizers / 0.00 – 4.00 mg/l / liquid / Resolution 0.01
ID 59 / Turbidity / 20 - 1000 mg/l (FAU) / Resolution 1
ID 112 / Turbidity / 0.5 - 1000 mg/l (NTU) / Adapter / Resolution 0.01
ID 120 / Urea / 0.1 - 2.5 mg/l / tablet + liquid / Resolution 0.1
ID 150 / Urea / 0.2 - 5.0 mg/l / tablet + liquid / Resolution 0.2
ID 62 / Zinc / 0 - 1 mg/l / tablet / Resolution 0.01
